VIBRATION SIEVE. SCREEN

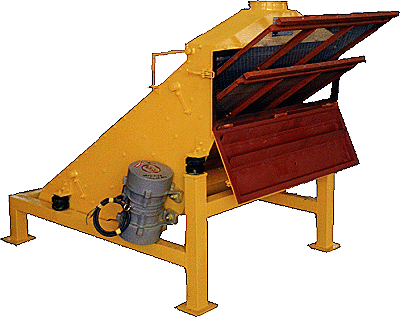

VIBRATION SIEVE-A

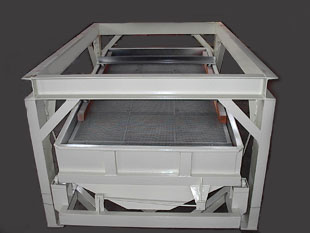

VIBRATION SCREEN-B



      VIBRATION SIEVE SCREEN

   This is a rigid construction sieve for separation fines or impurities from the required products    such as to separate fines and cakes from animal feed pellets or separate ropes and impurities    from grain. It is a genes design to slide the screen decks into screen chamber in an angle of    15 to 20 degree and drive by the two vibro-motor at two side to create vibration and help the    materials spreading out and flow through the screen fast and clean separation.



                                               SPECIFICATION

MODEL

Capacity Ton/Hr

Drive

Vibration R.P.M.

VS-1000-A

5-15

2pcs of 1/2HP

360-1800

VS-1200-A

15-30

2pcs of 3/4HP

360-1800

HVS--500-B

500x1300

1HP

2ps-Screen

HVS--800-B

800x1800

2HP

2ps-Screen

HVS-1000-B

1000x2400

3HP

2ps-Screen

HVS-1500-B

1500x3200

5HP

2ps-Screen
