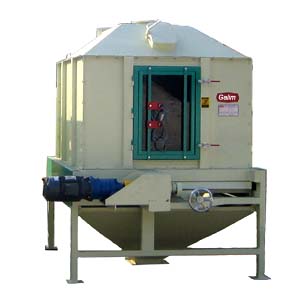

COUNTER FLOW COOLER

FLOWING SECTION





       COUNTER FLOW COOLER



       PRODUCTION ADVANTAGES

       Very hygienic operation owing to the small contact surface and the completely rest free system,        in accordance to the "First in - First out" system.

       No condensation problem thanks to the high final air temperature and the consequent low        relative  humidity.

       Low air consumption owing to application of a completely leak-free counter flow system.

       Energy recovery from the used air possible owing to the high final temperature.



                                       SPECIFICATION

Model

Capacity Kg/Hr

Volume M3

Cooling Time (min)

Horse Power

Poultry Ton/Hr Shrimp

Poultry

Shrimp

CVC 140

6

2.0

2.5

12-15

30-40

2HP

CVC 190

10

3.5

4.5

12-15

30-40

3HP

CVC 240

15

4.5

7.0

12-15

30-40

3HP

CVC 280

20

6.0

9.0

12-15

30-40

5HP
