EXTRUDER. EXPANDER





































EXTRUDER

EXPANDER

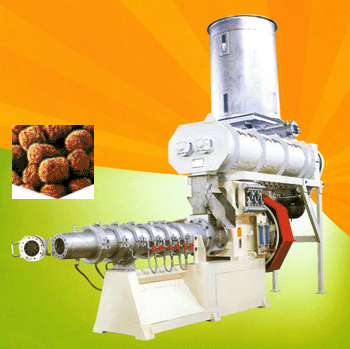

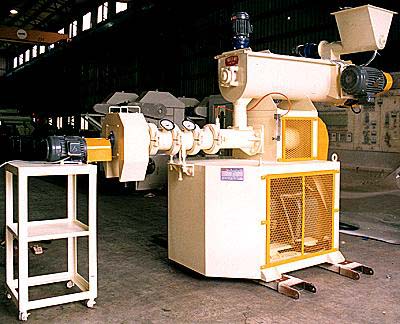

      THE GALIM  EXTRUDER / EXPANDER is an unique design for extrusion / expanding process

      for the production of :

      Fish feeds and shrimp feed switch the control of extrusion feed density for the feeds in

      floating. Slow sinking or fast sinking for the requirement of top fish feeders such as cat fish

      trout, milk fish tilapia and bottom feeders. Such as groupers and shrimp feeds

      Expanded dry pet foods, this pet foods are often sized at the die in variety of size and shapes

      includes beads, doughnuts, stars, wafers and bone shaped

      Gelatinization of cereals or stretch for human foods and snacks, such as cereals packs

      foods, textured soy proteins and snacks, crackers ... etc

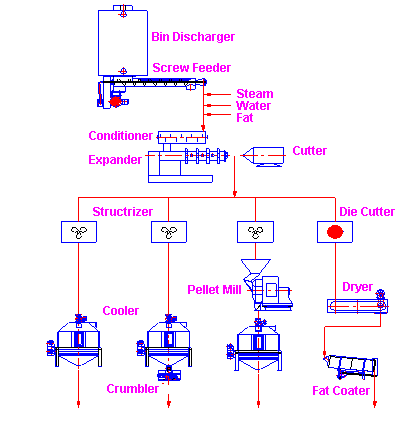

      This extrusion process includes for main units of equipments

        1. Continuously feeding bin and feeder

        2. Steam conditioner blender

        3. Main extrusion barrels and shaping die

        4. Cutter

     SEE TO PHOTO OF EXTRUDER LAYOUT





EXTRUDER  SPECIFICATION

Model

Capacity Kg/Hr

PRODUCT SIZE(mm)

Drive Motor (HP)

WE125

1500-2500

1.5-20

100-125

WE200

3000-5000

1.2-20

150-200

WE300

5000-8000

2.0-20

250-300



  ¡áAdvanced Technology of Expander Increased Extra Profits for Your Compound Feed



 For animal feed which is a

 Process to cook the feed  mesh by a machine call  "EXPANDER"In 130¡É

 temperature withen a short  time about 5second to

 gelatinize the feed to inprove

 The feed conversion ration up

 to 15% improve than ordinary

 pellet feed







                                                  EXPANDER SPECIFICATION

MODEL

CAPACITY (Ton/Hr)

DRIVE MOTOR  (HP)

GLEP125

6-10

100-150

GLEP200

11-15

150-200

GLEP300

16-25

200-300
