MIXER





































MIXER ASSEMBLY

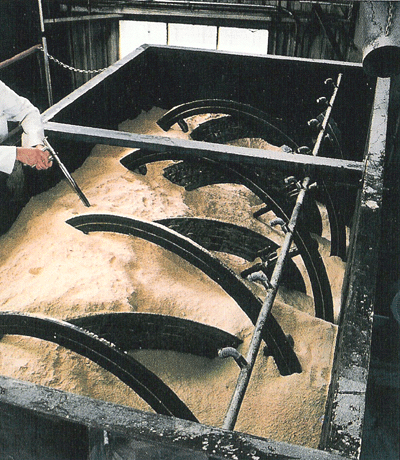

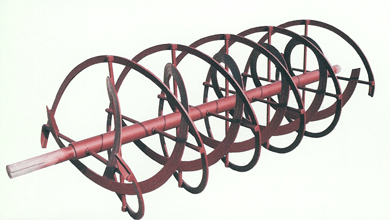

RIBBON SHAPE

 MIXING

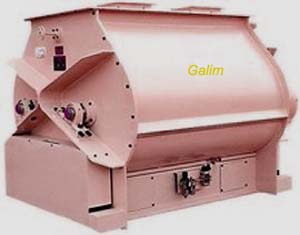

PADDLE MIXER



        HEAVY DUTY RIBBON & PADDLE MIXER PROVIDE



          Fast mixing performance within 1.5 to 4 minutes. High homogeneous mixing for C.V. :           Below 10% and available up to 5%. Extended bearing position with double gasket seal

          for  dust free mixing.   Drop button discharge provide fast and contamination free discharge.





                                                SPECIFICATION

Model

CAPACITYKg/Hr

VOLUMEM3

    MIXING TIME(min)

  POWER

POULTRY

FISH FEED

   MD 010

500

1.0

2-4

10-15

7.5-10

   MD 025

1000

2.5

2-4

10-15

15-20

   MD 050

2000

5

2-4

10-15

30-40

   MD 075

3000

7.5

3-5

15-20

50-60

   MD 100

5000

10

3-5

15-20

75-100
