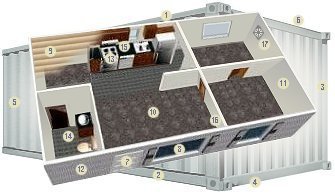

NO.

PRODUCT

DESCRIPTION

1

Top Rail

2.7 x 50 x 50mm

2

Bottom Rail

4.7 x 160 x 50 x 30mm

3

Corner Post

3.2 x 112 x 43 x 155 x 2387mm

4

Cross Member

3.0 x 70 x 120 x 25 x 2898mm
3.2 x 40 x 120 x 25 x 2892mm

5

Side Panel

1.6 x 1120 x 2330mm
1.6 x 900 x 2330mm
1.6 x 465 x 2330mm

6

Roof Panel

2.0 x 1050 x 2940mm

7

Steel Door

1.2 x 900 x 2100mm

8

Window

Aluminum frame two-section casement
Mosquito net
Steel security window

9

Ceiling

50mm Foamed polystyrene plastic panel
5mm Polyvinyl sheet
3.2mm Fine color plywood

10

Floor

3.2mm cross member not over a 450mm
   intervals
18mm plywood crewed to cross member
5mm Polyvinyl sheet
Protects floor from moisture and insures the
   integrity of the floor

11

Interior Wall

50mm Foamed polystyrene plastic panel
5mm Polyvinyl sheet
3.2mm Fine color plywood

12

Painting

Remove oil, grease, rust and other foreign matter
   by solvent cleaning before abrasive blast cleaning
Primer coating with Epoxy Zinc Rich Primer
Middle coating with Epoxy Zinc Phosphate Primer
Top coating with Chlorinated Rubber H.B

13

Kitchen

Cabinet
Sink bowl

14

Bathroom

Wash basin
Water closet

15

Water System

High grade fittings on water supply lines

16

Electrical System

Large enough to handle all household electrical
   needs

17

Ventilating Fan

250 x 250mm

No.1~6: Steel construction based on dry container
Electric or gas heater, Air conditioner and other facilities are available by
   customer's option
